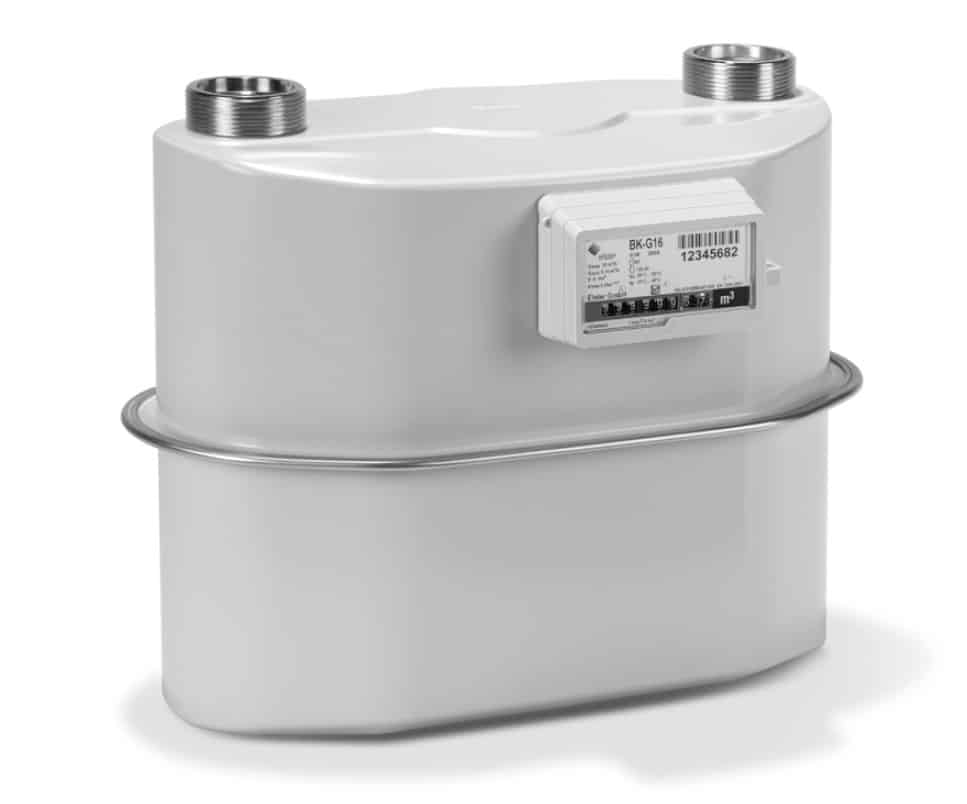

The commercial diaphragm gas meter BK-G10 and BK-G16 meet the highest demands with respect to accuracy of measurement and safety. They combine innovative features with many decades of gas measurement know-how. The BK-G10 and BK-G16 are supplied in folded form as coaxial and two-pipe versions. The stroke of the diaphragms is pneumatically stopped and therefore ensures both low bearing loads and a quiet operation. The stadium-shaped synthetic diaphragm of the U16/G10 Gas Meter is dimensionally stable. High-grade materials and components as well as the patented curve K-system ensure a high quality standard. The K-system perfectly coordinates the movement of the valves with the actual gas flow to the measuring chambers. This ensures excellent linearity even when using small valves. Due to the optimised slides, Qmin of U16/G10 Gas Meter is stable and the gas meter is not susceptible to contamination (RPF 0.8 to BS4161). The measuring unit is adjusted by a patented needle-and-scale system. Although the design of the U16/G10 Gas Meter is very robust, the gas meters are still measuring instruments and as such should be handled with care.
