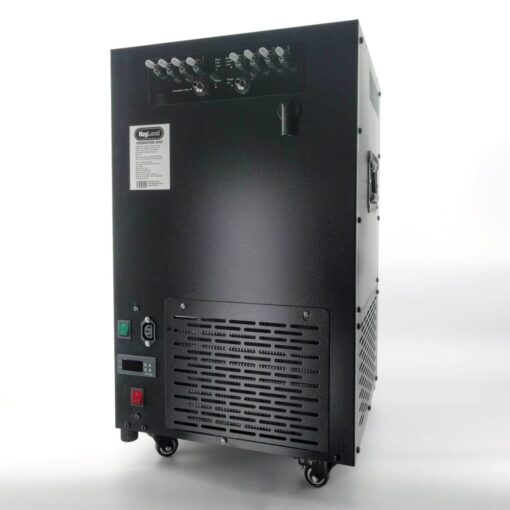

IceMaster G40.1 – Glycol Chiller / IceBank- Digital Control

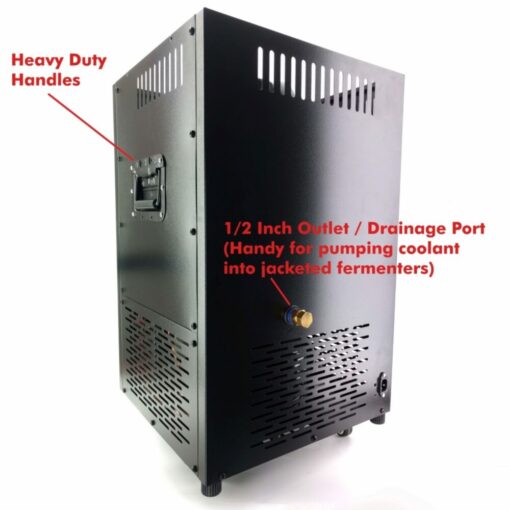

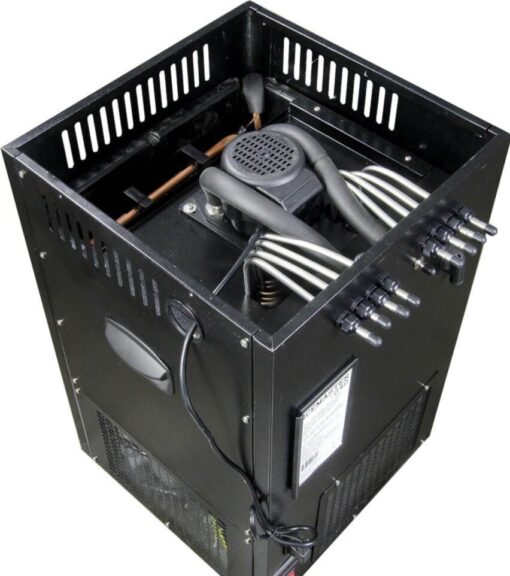

WE DO NOT HAVE A FLAT FREIGHT FEE FOR THESE ANY MORE. PLEASE CONTACT US ON THE CONTACT PAGE FOR A FREIGHT QUOTATION, THANKYOU.Commercial grade compact chilling dispensing solution.  The G40.1 offers high performance for small to medium volume customers. Suits to small bars, cafés, restaurants or even the increasingly popular travelling bars.It is also not uncommon for some craft brewers to use this device to control the fermentation temperature of their vessels, providing they have a thick insulated jacket.  We would not recommend this product for over 500L capacity vessels.Comes with flooding impeller pump as standard, all enclosed inside the unit for efficiency and ease in transport. The G40 is also completely enclosed including the removable lid, this will aid in cooling performance due to less heat loss.8mm 304 Stainless tubing ideal for compression fittings to 6mm barbs for product lines located at the side of the unit making them easier to install under commercial bar tops where height restriction is limited. Ideally suited to be used for a glycol system, but can be used as an icebank.We would like to make clear that with one pass through, through the G40.1 will only be able to drop the temperature of your product by 15C. Hence we highly reccomend if you are dispensing in an area that will be over 30C, that you use the G40.1 only for two product lines, and double them up through the unit. e.g. Passes through the chiller twice in a loop.Specifications Pump: Impeller Pump Combination 35watts (6.5meter Head, approx 2000L/hour)Product Lines: 4 Stainless Steel Product Lines (4 x 11meter Coils)Product Line Size: 304 Stainless Steel Coils (8mm OD x 7mm ID)Cooling Output Line: 10mm OD 8mm IDIcebank: 22kg Icebank (when using water)Tank Capacity: 40L Water CapacityCooling Capacity: 780watt Cooling Capacity.Typical Product Cooling Capacity: 60Litres in the first hour, 35Litres each additional hourCompressor Wattage: 260wattRefrigerant: r600Dimensions: 410mm x 410mm x 660mm Digital Temp Controller We use a STC-1000 temp controller on this unit to control the temperature.  If you would like to download the PDF instruction sheet for this controller please click on the link below: STC-1000 Temperature Controller Instruction PDF
